QJY20240301-02 Modern Decorative Smart Film License Plates

Place of Origin : Shandong, China

Brand Name : QJY

Model Number : QJY20240301-02

MOQ : 10 square meters

Price : $40.00/square meters 10-44 square meters

Warranty : 3 years

After-sale Service : Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement

Project Solution Capability : graphic design, 3D model design, total solution for projects, Cross Categories Consolidation

Application : Villa, Indoor Decorative

Design Style : Modern

Function : Decorative

Feature : Self-Adhesive

Type : Glass Films

Surface Treatment : Opaque

Color option : white, black, gray, pink and green

Thickness : 0.38mm

Size : 1.52*30m/roll

Width : 1.5/1.8m

MOQ : 1 Square Meter

Package : Carton Package

Control method : Dimming Control

Advantage : Decorative+Various Color+Water-proof

Design : OEM Acceptable

Delivery Time : small quantities 7-15 working days after order

Contact Now

QJY20240301-02 Modern Decorative Smart Film License Plates

Smart film, also called Switchable film, is a product that is capable of adjusting light transmission between transparent and opaque using AC power. Due to moisture sensitivity, earlier versions of the film were used only to make smart glass by lamination on glass. The self-adhesive film can be pasted on the glass directly,no need lamination. After installation,connect with power supply, the glass will turn from opaque to transparent. Keep your room have enough light to enter the room, but also keep privacy.

Item Description					Standard PDLC Film
Optical Test	Transmittance(Visable)	ON	81%
				OFF	≥60%
Optical Test	Transmittance(Parellel)	ON	>75%
				OFF	<6%
		Haze	ON	<5%
				OFF	97%
		Visual Angle	ON	>140°
		UV Resistance	ON	>99%
				OFF	>99%
		IR Resistance	ON	>15%
				OFF	>40%
Eletrical Test	Working Voltage	ON	AC 48-60V
		Saturation Voltage	ON	AC 60V
		Response Time	ON-OFF	200ms
		Power Consumption	ON	6w/sqm
Mechanical Parameter	Thickness			0.38mm
		Maximum Size			1800*50000mm
Environmental Parameter	Working Temperature			-10°C - 65°C
		Storage Temperature			-10°C - 40°C
		Service Life			>50000 hours
		Switch Frequency			> 1000000 times

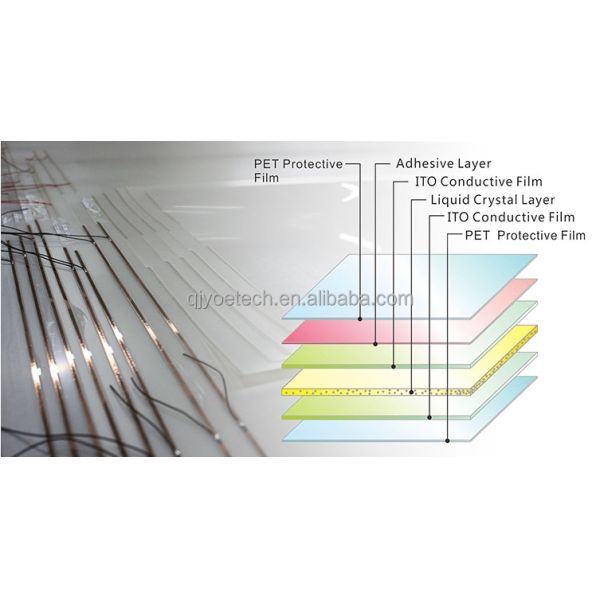

Working principle

Wiring instructions

Control methods: manual switch, touch switch, voice control, IR sensor, remote control and smart mobile phone APP etc.

1.Privacy Protection
When the power is on (transparent), the space can be expanded to the maximum extent, which is convenient for internal and external communication. But when the power is off (opaque), it can instantly create a privacy space.
2.Energy-saving and Cost-reducing
The smart film and glass are made into smart switchable glass, which has good thermal insulation effect to reduce indoor solar heat energy, and air conditioning power consumption.
3.Screen Projection
Using a projector to project onto the smart film (self-adhesive film) can produce a clear projection effect. When combined with infrared touch frame, you can also build a large-size (more than 100 inches) touch screen.

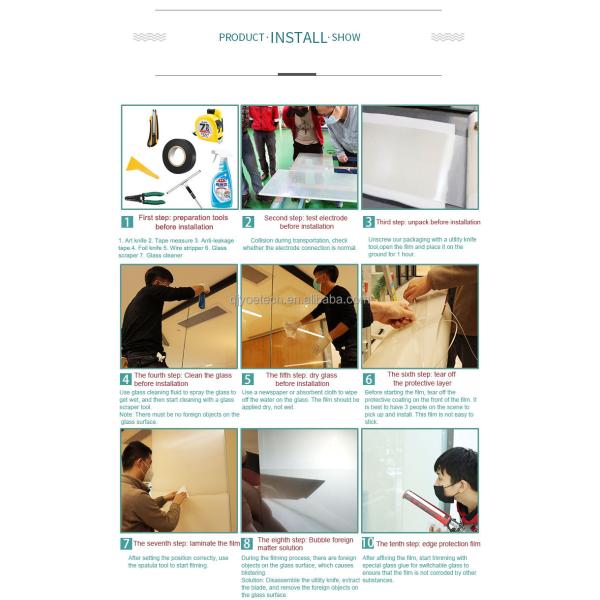

How to install Adhesive smart switchable film?

After our client place an order for the self-adhesive smart switchable film, we will have specific video and picture installation instructions to ensure your smooth installation. At the same time, we have the following colors are available for the self-adhesive smart switchable film.

1. Operation department, slapup office / meeting room / receiption room, luxury villa / private room, doors / windows / partitions of senior entertainment.

2. Special ward / operating room of hospital, monitoring room / inquiry room of police station, court, prison.
3. High-class washing room/bathroom,cars, lorries,luxury yacht.
4. Jewelry shop,museum,insurance counter,automatic equipment.
5. Large-scale projection screens.
6. vehicle's windows
7. Other needed places

1. How does Smart Film work? In “Off State” when no electrical power is applied on the smart film the light is absorbed or scattered and the film looks white frosted. In “On State” the light is transmitted and the film looks transparent.And we can provide the video of installation! 2. What is the product lead time? Lead time for PDLC Film Products is 7 days after received payment. 3. What is the size of your smart film in roll? Width: 1200mm, 1500mm, 1800mm, and can be customized. Length: 50 meters long. 4. What are your shipment terms? We deliver it by air/express transportation. Customer clear customs, release and deliver to final destination. normally it takes 3 to 9 days to arrive. 5. Is there a MOQ (Minimum of Quantity)? MOQ is flexible, but special color based of 1 roll. 6. What is the expected life of your products? Life time is more than10 years or switch >2000000times. 7. Can we cut the smart films? Yes. you can. you may use sharp knife to cut as requested. 8. Can we ask for samples? Yes, we provide samples for free of charge. customers only need pay the freight. 9. If we buy smart film in roll, can we cut and install busbars by ourself? Yes, you can. we shall provide cutting and installation video if needed.

QJY20240301-02 Modern Decorative Smart Film License Plates Images
